HYDRAULIC STRUCTURES AFITER 3D
Use
The AFITER® 3D range is particularly well suited to :
- road infrastructure,
- capping waste storage facilities (ISD)
- hydraulic structures
It ensures that they blend in better with the landscape, by making it easier to plant them. This solution retains moisture, which encourages vegetation on slopes and embankments.
Installing this soil-retaining solution is extremely quick and easy, as it unrolls just like a standard geotextile.
The product does not need to be anchored or hooked into the slope. It only needs to be fixed at the top, and its flexibility means it can adapt perfectly to the slope.
MULTI-PURPOSES
• Soil retention,
• Erosion control,
• Revegetation,
• Puncture protection,
• Moisture retention,
• Séparation/filtration,
• Drainage (for the DRAINTUBE® version).
THE AFITER® 3D RANGE
AFITER® 3D G
combines a
reinforcement
geogrid with an antipuncture
nonwoven
geotextile. This is the
classic version of the
range.
AFITER® 3D T
The anti-puncture geotextile is replaced by a finer separation/filtration geotextile, allowing roots to pass through for deeper root anchorage in the embankment, ideal for shrub-like vegetation.
AFITER® 3D DRAIN
In this variant drainage function is added to AFITER 3D® G is combined with the DRAINTUBE® drainage geocomposite.
Benefits
- Multifunctional global solution.
- Reduced footprint by increasing slopes.
- High stability over time for greater durability of structures.
- Easier planting of structures to blend in with the landscape and a reduced carbon footprint.
- Quick and easy to install.
- Fights erosion and initial climatic impacts.
- Does not crush under the weight of soil.
- Large range of traction resistance, up to 450 kN/m.
- Large width (3.90 m) / roll lengths and layouts available on request.
Features
Drainage
Earth retention
Filtration
Reinforcement
Separation
Characteristics

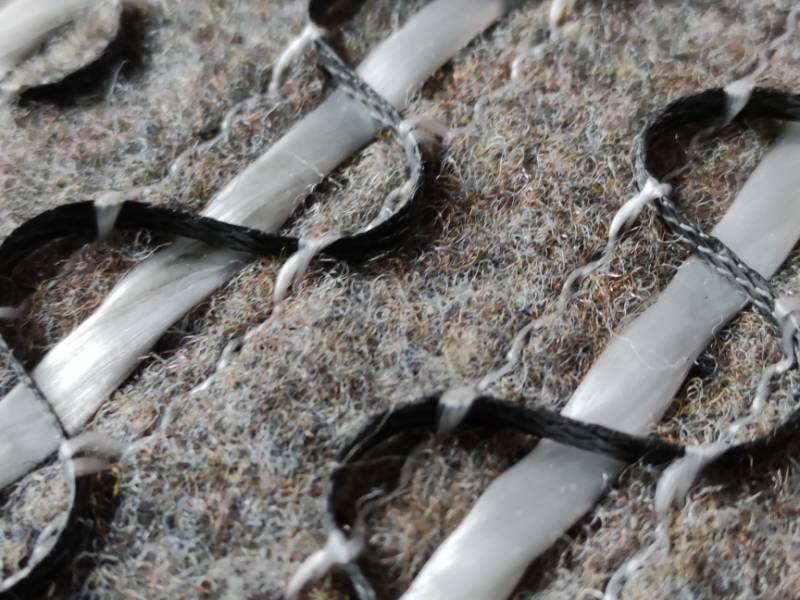

- Polyethylene geocomposite reinforced with high-tenacity polyester yarns and rigid polypropylene strips
- Width : 3 m
- Length : 100 m
- Traction resistance :up to 400 kN/m
