LANDFILL DRAINTUBE FT

DRAINTUBE FT - Leachate collection

Use

To protect the groundwater table from the ingress of contaminated leachate, a waterproofing system is installed during the construction or extension of landfills. The next step is to use a drainage solution by DRAINTUBE® FT to protect the geomembrane at the bottom of the cell and drain leachate towards a collector drain.

Placed on the geomembrane, DRAINTUBE® FT makes it possible in just one operation to install filtration, rainwater drainage and mechanical protection of the geomembrane. It replaces the upper protective geotextile of the geomembrane, the layer of granular drainage materials and the filtration geotextile.

Connection to the collector via the Quick Connect system

The Quick Connect system directly connects the mini-drains from the DRAINTUBE® FT to the main collector drain. In the event of gas drainage, it generates negative pressure in the entire system.



Benefits

  • Quickly drains leachate from the bottom of the cell
  • Protects the geomembrane against puncture
  • Cost-effective and environmentally friendly solution avoiding the use of granular drainage materials
  • Increased storage capacity of the cell
  • Stability tested under extreme conditions

Features

Drainage Drainage
Filtration Filtration
Mechanical protection Mechanical protection

Characteristics

  • Polypropylene geocomposite
  • Roll width : 3.90 m
  • Roll length : 50 m
  • 3 diameters of perforated mini-drains : 16 mm, 20 mm and 25 mm
  • 4 possible distances between mini-drains : 200 cm, 100 cm, 50 cm and 25 cm


Projects completed with DRAINTUBE FT

Leachate drainage at the bottom of a landfill

Leachate drainage at the bottom of a landfill

[Environment]

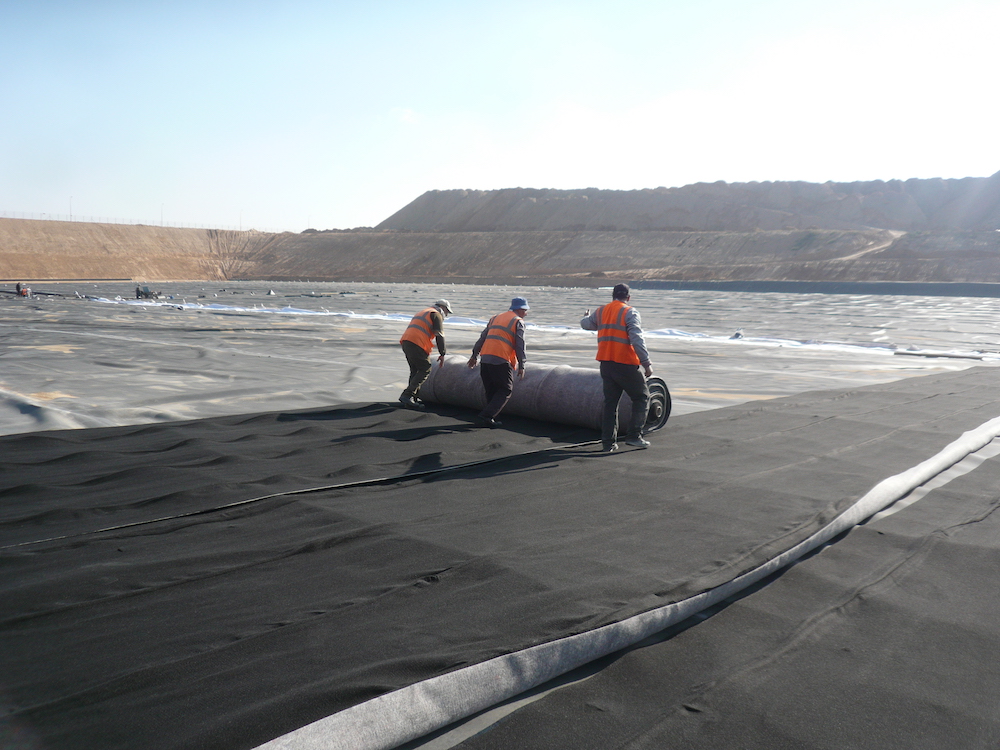

Zahleh Municipality Landfill Site (Lebanon)
17 000 m2

DRAINTUBE FT was installed on the liner system to drain the leachate from the bottom and the slope at the Zahleh landfill and to evacuate it to a recovery basin.
